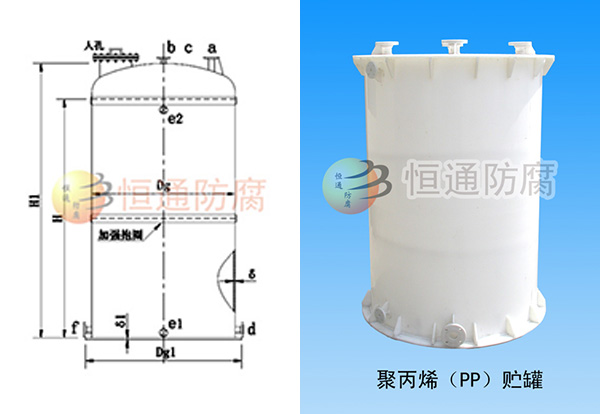

Uses of pipe: a: feed inlet b: ready inlet c: vent nozzle d: ready inlet e1 e2: fluid level f: discharge hole g: ready inlet h: hand-hole

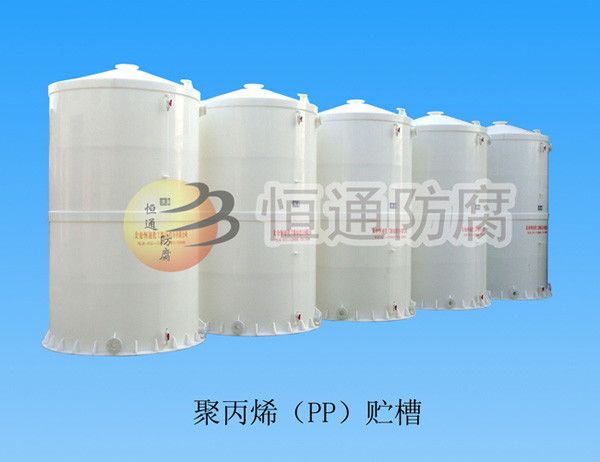

Our storage tank is developed taking PP as material. It is used for material storage in chemical, petroleum, medical, food, oil and grease, dyeing and printing, metallurgy, environmental protection and light industry. It is divided into vertical and horizontal type.
Equipment specification: 0.1 cube- 5 cube or customized processing on requirement
Performance feature:
Operation pressure: normal pressure
Operation temperature: PP -10℃～120℃
Strong corrosion resistance, convenient for operation and long serve life
Light weight: specific gravity: 0.91-0.92; convenient for transportation, installation and maintenance
Specification table of vertical storage tank
|
Nominal volume M3
|
External dimension
|
Specification of faucet (DN)
|
|||||||||||
|
Dg
|
Dg1
|
H
|
H1
|
δ
|
δ1
|
a
|
b
|
c
|
d
|
e1 e2
|
f
|
人孔
|
|
|
0.5
|
800
|
960
|
1000
|
1300
|
12
|
14
|
40
|
25
|
25
|
40
|
20
|
40
|
/
|
|
1
|
1000
|
1160
|
1300
|
1630
|
12
|
14
|
50
|
25
|
25
|
50
|
20
|
50
|
/
|
|
2
|
1200
|
1360
|
1800
|
2180
|
12
|
14
|
50
|
32
|
32
|
50
|
20
|
50
|
400
|
|
3
|
1400
|
1560
|
2000
|
2430
|
14
|
15
|
50
|
40
|
40
|
50
|
20
|
50
|
400
|
|
4
|
1600
|
1760
|
2000
|
2480
|
14
|
15
|
65
|
50
|
40
|
50
|
20
|
65
|
400
|
|
5
|
1600
|
1760
|
2500
|
2980
|
14
|
15
|
65
|
50
|
40
|
50
|
20
|
65
|
400
|
|
6
|
1800
|
1960
|
2300
|
2830
|
15
|
16
|
65
|
50
|
40
|
50
|
20
|
65
|
400
|
|
8
|
1800
|
1960
|
3200
|
3730
|
15
|
16
|
80
|
65
|
50
|
80
|
20
|
80
|
400
|
|
10
|
2000
|
2160
|
3200
|
3780
|
15
|
18
|
80
|
65
|
50
|
80
|
20
|
80
|
400
|
|
12
|
2200
|
2360
|
3200
|
3830
|
15
|
18
|
80
|
65
|
50
|
80
|
20
|
80
|
400
|
|
15
|
2200
|
2360
|
3900
|
4530
|
16
|
18
|
100
|
80
|
65
|
100
|
20
|
100
|
400
|
|
20
|
2400
|
2600
|
4500
|
5180
|
16
|
18
|
100
|
80
|
65
|
100
|
20
|
100
|
500
|
|
25
|
2600
|
2800
|
4600
|
5330
|
18
|
20
|
100
|
80
|
65
|
100
|
20
|
100
|
500
|
|
30
|
2800
|
3000
|
4900
|
5680
|
18
|
22
|
100
|
80
|
80
|
100
|
20
|
100
|
500
|
|
35
|
2800
|
3000
|
5700
|
6480
|
20
|
24
|
100
|
80
|
80
|
100
|
20
|
100
|
500
|
|
40
|
2800
|
3000
|
6500
|
7280
|
20
|
25
|
100
|
80
|
80
|
100
|
20
|
100
|
500
|
|
45
|
2800
|
3000
|
7300
|
8080
|
22
|
25
|
100
|
80
|
80
|
100
|
20
|
100
|
500
|
|
50
|
3000
|
3200
|
7100
|
7930
|
25
|
30
|
100
|
80
|
80
|
100
|
20
|
100
|
500
|
|
55
|
3000
|
3200
|
7800
|
8630
|
25
|
30
|
100
|
80
|
80
|
100
|
20
|
100
|
500
|
|
60
|
3200
|
3400
|
7500
|
8380
|
25
|
30
|
100
|
80
|
80
|
100
|
20
|
100
|
500
|
